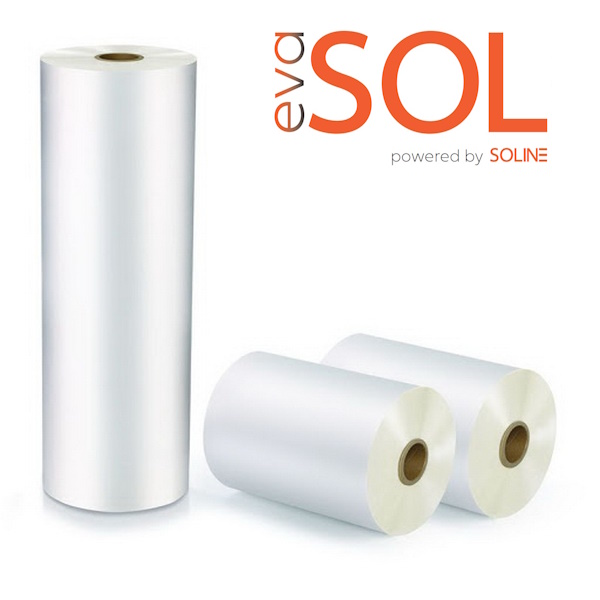

EVASOL

EVA ENCAPSULANT FILM

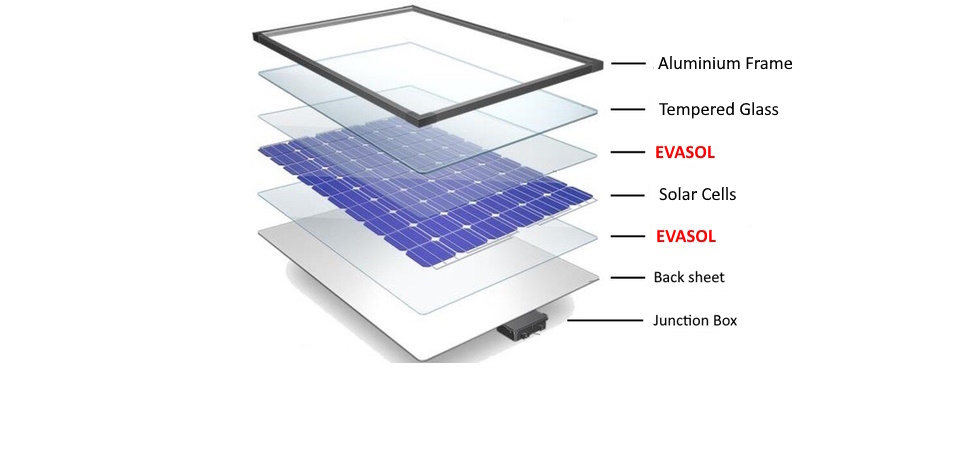

Although solar panels appear to be a simple structure from the outside, they are a combination of high-tech products. Every component used in the panels must be durable and of high quality.

One of these components is EVA (Ethylene Vinyl Acetate) encapsulant films. It allows sunlight to reach the cells with its transparent structure. It protects the panels from moisture, water, dirt and external factors while keeping the entire structure of the panel together. As well as having optical permeability, it is also resistant to UV rays and provides electrical insulation. Protects solar panels for more than 25 years.

PRODUCT FEATURES AND TECHNICAL INFORMATION

Thickness: 0,4 – 0,6 mm

Width and Length: Width maximum 1300 mm / Lenght 100 – 600 m

• High adhesion ability to glass and backsheet
• Long-term durability with high crosslinking
• High permeability with high aging resistance
• Low shrinkage rate with lamination stability
• Very low yellowing rate thanks to its high strength
• Long shelf life

QUALITY AND TESTS

We carry out our tests with regularly calibrated devices in our advanced and well-equipped laboratory. We also have tests done in accredited laboratories.

The tests we carry out according to ASTM and ISO Standards;
• Crosslinking rate test
• Adhesion – peel test
• Water absorption test
• Shrinkage rate test
• Tensile strength and elongation tests
• Density Tesy
• Shore A hardness test

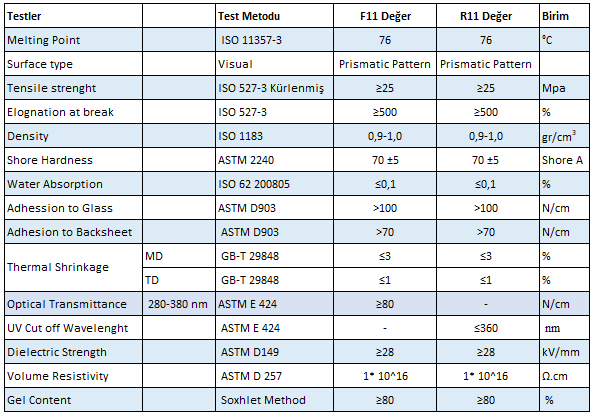

TECHNICAL DATA SHEET
